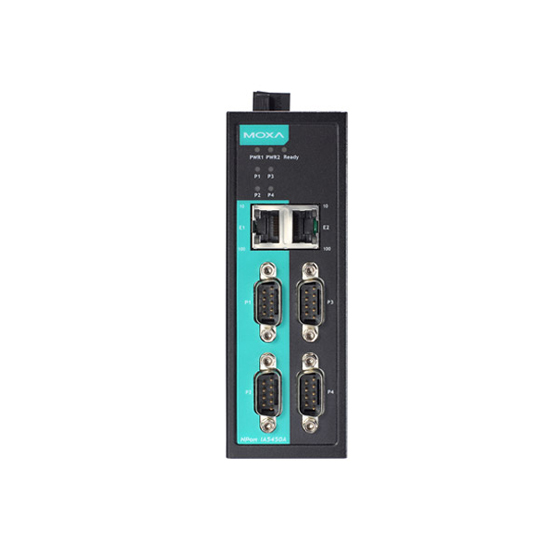

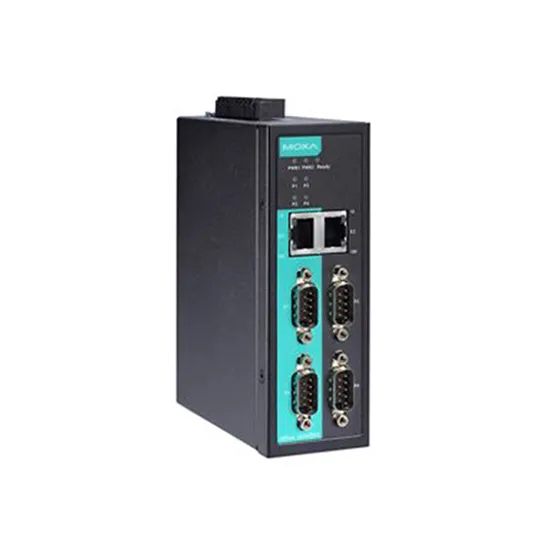

MOXA NPort IA5450AI Serial to Ethernet Device Server

Tags: Industrial Edge Connectivity , Serial Device Servers , Industrial Device Servers , Industrial Serial Device Servers , Serial to Ethernet Device Servers , Serial to Ethernet Converters , Industrial Converters , Converters , MOXA NPort IA5000A Series

MOXA NPort IA5450AI Serial to Ethernet Device Server

Model: NPort IA5450AI

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA NPort IA5450AI FEATURES

2 x 10/100BaseT(X) Ports (RJ45 connector)
4 x RS-232/422/485 Serial Ports (DB9-M connector)
2 KV Isolation protection for serial ports
12 to 48 VDC Redundant dual power inputs
Metal body design
DIN-rail and Wall mounting
0 to 60°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA NPort IA5450AI INTRODUCTION

The NPort IA5000A device servers are designed for connecting industrial automation serial devices, such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The device servers are solidly built, come in a metal housing with screw connectors, and provide full surge protection. The NPort IA5000A device servers are extremely user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA NPort IA5450AI Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NPort IA5250A, NPort IA5250A-T, NPort IA5250AI, and NPort IA5250AI-T models in the MOXA NPort IA5000A Series.

MOXA NPort IA5450AI CERTIFICATIONS

Serial-to-Ethernet : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 2 Ports
100BaseFX Ports	No
Digital Input Channels	No
Digital Output Channels	No
Isolation	Yes : 2 KV
Magnetic Isolation Protection	1.5 kV (built-in)
Alarm Contact Channels	No
Protocols	-
Serial-to-Ethernet : Serial Interface
Number of Ports	4 Ports
Serial Standards	RS-232, RS-422, RS-485
Connector	DB9 male (RS-232/422/485)
Console Port	No
Serial-to-Ethernet : Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF, None
Baudrate	Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Serial-to-Ethernet : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Serial-to-Ethernet : Communication details
Wireless Standards	No
Maximum data transfer speed	No
Maximum direct range	No
Serial-to-Ethernet : Power Requirements
Connection	Terminal block
Input Voltage	12 to 48 VDC
Input Current	512 mA @ 12 VDC
Serial-to-Ethernet : General
Management	ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
MTBF	763,711 hrs
Compatible operating systems	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers	SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
Automatic Reboot Trigger	-
Serial-to-Ethernet : Security
Authentication	Local database
Security	Protocols: SNMPv3
Encryption	HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Serial-to-Ethernet : Features and capabilities
Display	No
Serial-to-Ethernet : Physical Characteristics
Dimensions	45.8 x 134 x 105 mm (1.8 x 5.28 x 4.13 in)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Hazardous Locations: : UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx; Safety: UL 508; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Housing	Metal
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Weight	560 g (1.23 lb)
