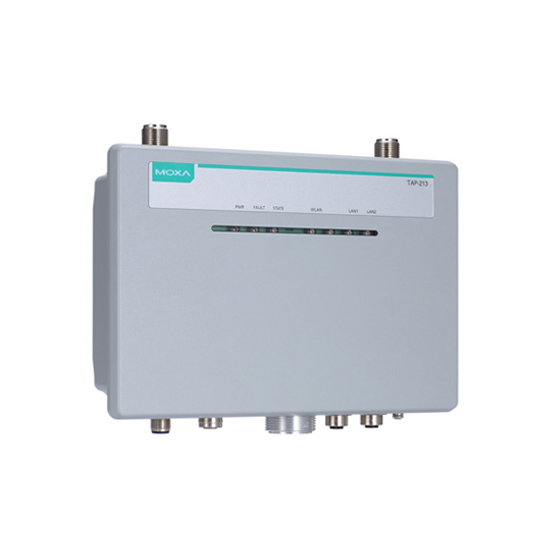

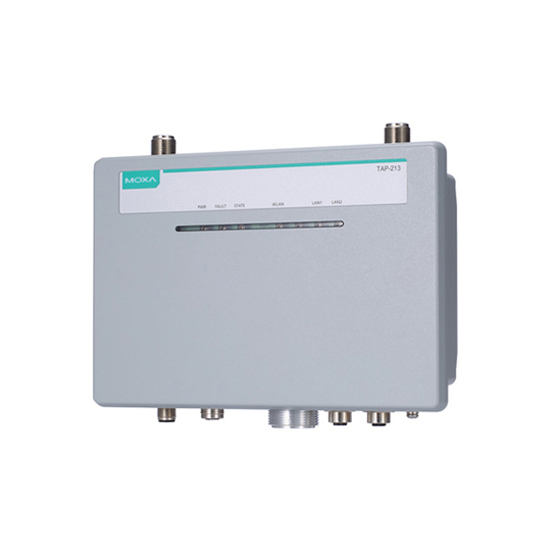

MOXA TAP-213-JP-CT-T Wireless Access Point
- Model: TAP-213-JP-CT-T
MOXA TAP-213-JP-CT-T INTRODUCTION
The TAP-213 outdoor wireless AP/client is the ideal ruggedized wireless solution for railway onboard and train-to-ground applications such as CCTV and CBTC communications. The TAP-213’s dust-tight, weatherproof design is IP68-rated, allowing you to extend wireless networks to outdoor locations and critical environments. The two redundant DC power inputs increase the reliability of the power supply and the device can also be powered via PoE for easier deployment. The TAP-213 is compliant with the mandatory test items of the EN 50155 standard to ensure suitability for rolling stock applications. With many hardened industrial-grade features, the TAP-213 will provide stable and reliable wireless connectivity, especially for rail onboard environments.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA TAP-213-JP-CT-T Wireless Access Point online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the TAP-213-US-CT-T and TAP-213-EU-CT-T models in the MOXA TAP-213 Series.
MOXA TAP-213-JP-CT-T CERTIFICATIONS

| Access Point : Interfaces | |
| Frequency Band | 2.412 to 2.484 GHz (14 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels) |
| Modulation Type | DSSS, MIMO-OFDM, OFDM |
| 10/100/1000BaseT(X) Ports | Yes : 1 Port (M12 X-coded 8-pin female connector) |
| PoE Ports | No |
| Wireless Security | WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal |
| 100BaseFX Ports | No |
| WLAN Antenna Connector | 2 x N-type female |
| WLAN Operation Mode | Access point, Client, Client-Router, Sniffer |
| Security | HTTPS/SSL, RADIUS, SSH |
| WLAN Standards | 802.11a/b/g/n, 802.11i Wireless Security |
| Transmission Rates | 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 2, 5.5, 11 Mbps, 802.11n HT20: 6.5 to 144.4 Mbps (MCS0 to MCS15), 802.11n HT40: 13.5 to 300 Mbps (MCS0 to MCS15) |
| 1000BaseSFP Slots | Yes : 1 Port |
| Serial Ports | No |
| 10/100BaseT(X) Ports | No |
| Digital Inputs | No |
| Console Port | Yes : 1 x USB-M12 console (M12 B-coded 5-pin female connector) |
| M12 Connector | Yes : M12 A-coded 5-pin female (for ABC-02 USB storage) |
| Access Point : Power Requirement | |
| Input Current | 0.65 A @ 24 VDC, 0.16 A @ 110 VDC |
| Input Voltage | 24 to 110 VDC, Redundant dual inputs |
| Connector | M12 A-coded 4-pin male connector |
| Power Consumption | 17.6 W (max.) |
| Reverse Polarity Protection | Supported |
| Access Point : Physical Characteristics | |
| Humidity | 5 to 95% (non-condensing) |
| Dimensions Packaged | 220 x 150 x 50.5 mm (8.66 x 5.91 x 1.99 in) |
| Weight (PACKAGED) | 1,500 g (3.31 lb) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Radio Frequency: EN 300 328, EN 301 489-1/17, EN 301 893, FCC, IC, WPC; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Safety: EN 60950-1, UL 60950-1, IEC 60950-1; IP68; Telcordia SR332 |
| Housing | Metal |
| Installation | Wall mounting (standard), DIN-rail mounting (optional), Pole mounting (optional) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Access Point : General | |
| Management | SNMPv1/v2c/v3, DHCP Server/Client, IPv4, LLDP, SMTP, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console, Wireless Search Utility |
| Time Management | NTP Client, SNTP |
| MTBF | 758,369 hrs |
| LED Indicators | - |
