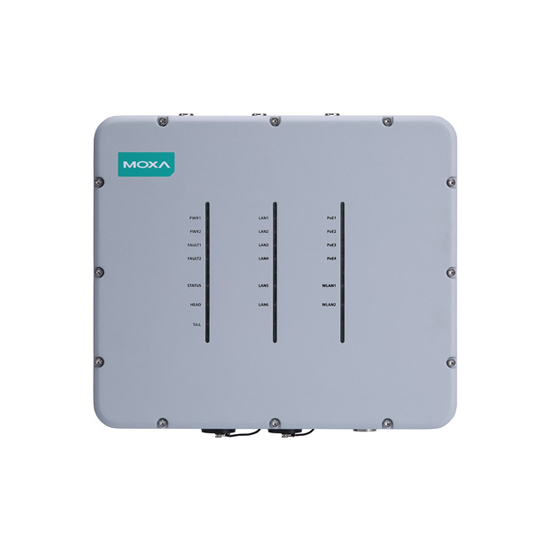

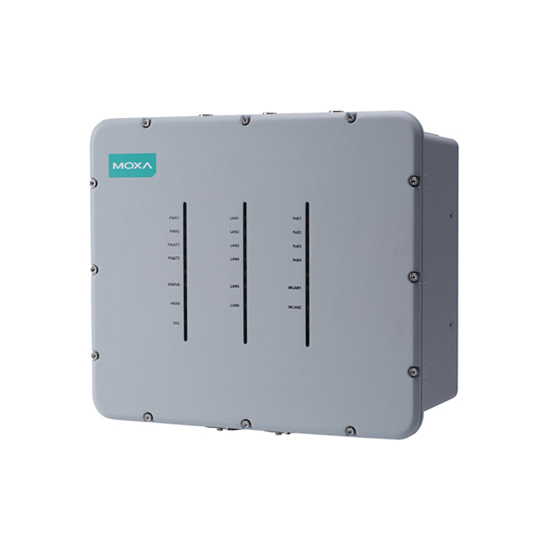

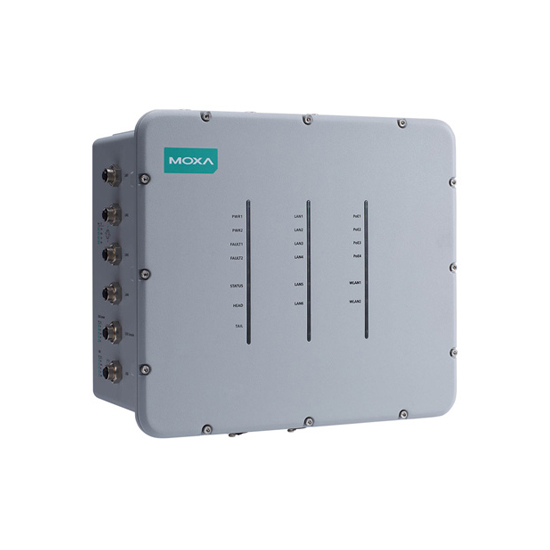

MOXA TAP-323-US-CT-T Wireless Access Point
- Model: TAP-323-US-CT-T
MOXA TAP-323-US-CT-T INTRODUCTION
The TAP-323 trackside wireless unit is designed for
train-to-ground wireless communication. The TAP-323 is a highly compact and
rugged wireless unit that integrates two access points, a managed fiber switch,
and a wide-range AC/DC power supply into one box. The IP68 housing allows the
unit to withstand harsh weather conditions, and the M12 connectors make the
unit shock and vibration-resistant. The TAP-323 supports advanced
controller-based Turbo Roaming technology for train-to-ground wireless
applications such as communication-based train control (CBTC) and CCTV. The
unit can supply power to up to 4 PoE devices while providing reliable LAN
communication with Moxa’s Turbo Chain technology.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA TAP-323-US-CT-T Wireless Access Point online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the TAP-323-JP-CT-T and TAP-323-EU-CT-T models in the MOXA TAP-323 Series.
MOXA TAP-323-US-CT-T CERTIFICATIONS

| Access Point : Interfaces | |
| Frequency Band | 2.412 to 2.462 GHz (11 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (8 channels) Excludes 5.600 to 5.640, 5745 to 5825 GHz (5 channels) |
| Modulation Type | DSSS, OFDM |
| 10/100/1000BaseT(X) Ports | No |
| PoE Ports | No |
| Wireless Security | WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal |
| 100BaseFX Ports | No |
| WLAN Antenna Connector | 5 x N-type female |
| WLAN Operation Mode | Access point |
| Security | HTTPS/SSL, RADIUS, SSH |
| WLAN Standards | 802.11a/b/g/n, 802.11i Wireless Securit |
| Transmission Rates | 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 2, 5.5, 11 Mbps, 802.11n HT40: 13.5 to 300 Mbps (MCS0 to MCS15) |
| 1000BaseSFP Slots | Yes : 2 Ports |
| Serial Ports | No |
| 10/100BaseT(X) Ports | Yes : 4 Ports (M12 D-coded 4-pin female connector) |
| Digital Inputs | No |
| Console Port | Yes : USB-M12 console (M12 B-coded 5-pin female connector) |
| Connections | PoE, M12, Fiber |
| M12 Connector | Yes : M12 A-coded 5-pin female (for ABC-02 USB storage) |
| Access Point : Power Requirement | |
| Input Current | AC input: 110 to 220 VAC, 50 to 60 Hz, 1.1 A (max.), DC input: 110 to 220 VDC, 1.1 A (max.) |
| Input Voltage | Redundant dual inputs, 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC) |
| Connector | M12 A-coded 4-pin male connector |
| Power Consumption | 85 W (max.) |
| Reverse Polarity Protection | Supported |
| Access Point : Physical Characteristics | |
| Humidity | 5 to 95% (non-condensing) |
| Dimensions Packaged | 324 x 279 x 156 mm (12.76 x 10.98 x 6.142 in) |
| Weight (PACKAGED) | 10,000 g (22.22 lb) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4, EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Radio Frequency: FCC, IC, WPC, RED; Radio: MIC; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Safety: EN 60950-1, UL 60950-1, IEC 60950-1; IP68; Telcordia SR332 |
| Housing | Metal |
| Installation | Wall mounting (standard), DIN-rail mounting (optional) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Access Point : General | |
| Management | SNMPv1/v2c/v3, DHCP Server/Client, IPv4, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console, Wireless Search Utility |
| Time Management | SNTP |
| MTBF | 290,937 hrs |
| LED Indicators | - |
