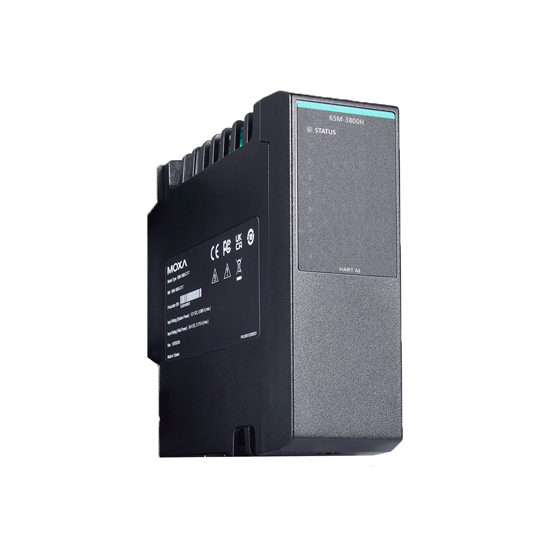

MOXA 65M-3800H-CT-T I/O Module

Model: 65M-3800H-CT-T

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA 65M-3800H-CT-T FEATURES

I/O and TB module for modular programmable IIN controllers
8 x Analog input channels (HART mode, 4 to 20 mA)
Plastic housing design
DIN-rail and Rack mounting (with optional kit)
-40 to 75°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA 65M-3800H-CT-T INTRODUCTION

The ioPAC 6500 Series (also referred to as Intelligent Integrated Node or IIN) is an advanced Linux-based RTU featuring a built-in Layer-2 managed switch. Equipped with an Arm Cortex-A53 quad-core CPU, the ioPAC 6500 Series delivers robust performance.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA 65M-3800H-CT-T I/O Module online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the 65M-2901-CT-T, 65M-3600-CT-T, 65M-4820-CT-T, and 65M-5801-CT-T models in the MOXA ioPAC 6500 Series (65M) I/O Modules.

MOXA 65M-3800H-CT-T CERTIFICATIONS

Remote I/O Modules : Input/Output Interface
Digital Input and Output	No
Analog Input and Output	Yes : 8 x Analog input channels (HART mode, 4 to 20 mA)
System Power Input Channels	No
Field Power Input and Output	No
Thermocouple Channels	No
RTD Channels	No
CAN Ports	No
Ethernet Ports	No
Relays	No
Serial Ports	No
Isolation	Yes : 3k VDC (Between signal and system)
Remote I/O Modules : Serial Interface
Connector	-
Serial Standards	-
Serial Communication Parameters	-
Serial Signals	-
Remote I/O Modules : General
MTBF	1,016,573 hrs
Remote I/O Modules : Power Requirements
Power Connector	-
Input Voltage	-
Power Consumption	System Power: 0.072 A @ 12 VDC Field Power: 0.05 A (max.) @ 24 VDC (without internal loop power), 0.25 A (max.) @ 24 VDC (8-channel 4 to 20 mA input with internal loop power, all in 20 mA), 0.66 A (max.) @ 24 VDC (500 mA input with internal loop power)
Remote I/O Modules : Physical Characteristics
Housing	Plastic
Dimensions	42 x 116 x 130 mm (1.65 x 4,57 x 5.12 in)
Weight	262 g (0.58 lb)
Installation	DIN-rail mounting Rack mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F) Note: Proper airflow is required in an environment with temperature > 65°C.
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35, EN 61000-6-2/-6-4 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV, IEC 61000-4-6 CS: Power: (DC) 10 V; Signal: 10 Vrms, IEC 61000-4-8 PFMF: 30 A/m Safety: UL 61010-2-201, UL 61010-1 Shock: IEC 60068-2-27, Half sine wave; acceleration: 15 g; time: 11 ms Vibration: IEC 60068-2-6; DIN-rail mounted: 7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz); Rack mounted (with optional kit): 7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz) Telcordia Standard SR-332
Altitude	Up to 2000 meters
