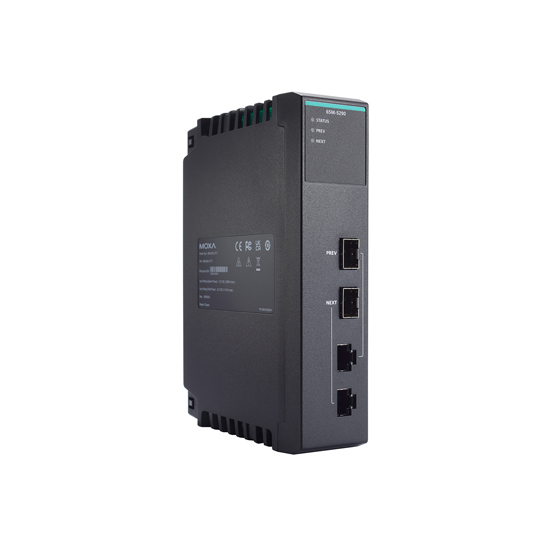

MOXA 65M-5290-CT-T Expansion Module

Model: 65M-5290-CT-T

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA 65M-5290-CT-T FEATURES

Expansion module for modular programmable IIN controllers
2 x SFP + 2 x RJ45 combo port design with priority for SFP ports
Plastic housing design
DIN-rail and rack mounting
-40 to 75°C operating temperature (with SFP module installed)

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA 65M-5290-CT-T INTRODUCTION

The ioPAC 6500 Series (also referred to as Intelligent Integrated Node or IIN) is an advanced Linux-based RTU featuring a built-in Layer-2 managed switch. Equipped with an Arm Cortex-A53 quad-core CPU, the ioPAC 6500 Series delivers robust performance.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA 65M-5290-CT-T Expansion Module online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ioPAC 6500 Series (65M) Backplane Modules, ioPAC 6500 Series (65M) CPU Modules, ioPAC 6500 Series (65M) Communication Modules, ioPAC 6500 Series (65M) I/O Modules, and ioPAC 6500 Series (65M) Power Modules in the MOXA Intelligent Integrated Node.

MOXA 65M-5290-CT-T CERTIFICATIONS

Remote I/O Modules : Input/Output Interface
Digital Input and Output	No
Analog Input and Output	No
System Power Input Channels	No
Field Power Input and Output	No
Thermocouple Channels	No
RTD Channels	No
CAN Ports	No
Ethernet Ports	Yes : 2 x SFP + 2 x RJ45 combo port design with priority for SFP ports
Relays	No
Serial Ports	No
Isolation	Yes : 1500 VDC/min Between the external connection port and the system
Remote I/O Modules : Serial Interface
Connector	-
Serial Standards	-
Serial Communication Parameters	-
Serial Signals	-
Remote I/O Modules : General
MTBF	2,800,019 hrs
Remote I/O Modules : Power Requirements
Power Connector	-
Input Voltage	-
Power Consumption	System Power: 0.38 A @ 12 VDC
Remote I/O Modules : Physical Characteristics
Housing	Plastic
Dimensions	42 x 177 x 131.5 mm (1.65 x 6.97 x 5.18 in)
Weight	501 g (1.1 lb)
Installation	DIN-rail mounting Rack mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F) (with SFP module installed) Note: Proper airflow is required in an environment with temperature > 65°C
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35, EN 61000-6-2/-6-4 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV, IEC 61000-4-6 CS: Power: Power: (DC) 10 V; Signal: 10 Vrms, IEC 61000-4-8 PFMF: 30 A/m Safety: UL 61010-2-201, UL 61010-1 Shock: IEC 60068-2-27, Half sine wave; acceleration: 15 g; time: 11 ms Vibration: IEC 60068-2-6; DIN-rail mounted: 7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz); Rack mounted (with optional kit): 7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz) Package Vibration Test: ISTA 1A Package Drop Test: ISTA 1A Telcordia Standard SR-332
Altitude	2000 m
