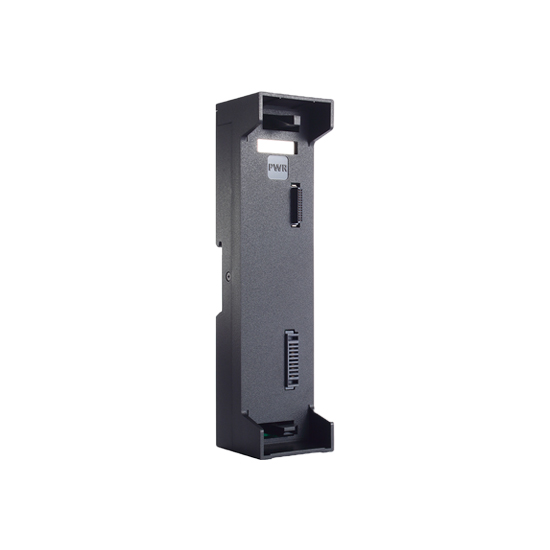

MOXA 65M-BMPW01-CT-T Backplane Module

Model: 65M-BMPW01-CT-T

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA 65M-BMPW01-CT-T FEATURES

Backplane module for modular programmable IIN controllers
1 x Slot for power module
Plastic housing design
DIN-rail and rack mounting
-40 to 75°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA 65M-BMPW01-CT-T INTRODUCTION

The ioPAC 6500 Series (also referred to as Intelligent Integrated Node or IIN) is an advanced Linux-based RTU featuring a built-in Layer-2 managed switch. Equipped with an Arm Cortex-A53 quad-core CPU, the ioPAC 6500 Series delivers robust performance.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA 65M-BMPW01-CT-T Backplane Module online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the 65M-BMPW02-CT-T, 65M-BMCPU01-CT-T, and 65M-BMEXP01-CT-T models in the MOXA ioPAC 6500 Series (65M) Backplane Modules.

MOXA 65M-BMPW01-CT-T CERTIFICATIONS

Remote I/O Modules : Input/Output Interface
Digital Input and Output	No
Analog Input and Output	No
System Power Input Channels	No
Field Power Input and Output	No
Thermocouple Channels	No
RTD Channels	No
CAN Ports	No
Ethernet Ports	No
Relays	No
Serial Ports	No
Isolation	No
Remote I/O Modules : Serial Interface
Connector	-
Serial Standards	-
Serial Communication Parameters	-
Serial Signals	-
Remote I/O Modules : General
MTBF	1,130,092,735 hrs
Remote I/O Modules : Power Requirements
Power Connector	-
Input Voltage	-
Power Consumption	-
Remote I/O Modules : Physical Characteristics
Housing	Plastic
Dimensions	43 x 177 x 45.5 mm (1.69 x 6.97 x 1.79 in)
Weight	162 g (0.36 lb)
Installation	DIN-rail mounting Rack mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F) Note: Proper airflow is required in an environment with temperature > 65°C
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35, EN 61000-6-2/-6-4 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV, IEC 61000-4-6 CS: Power: 10 V; Signal: 10 Vrms, IEC 61000-4-8 PFMF: 30 A/m Safety: UL 61010-1, UL 61010-2-201 Shock: IEC 60068-2-27, Half sine wave; acceleration: 15 g; time: 11 ms Vibration: IEC 60068-2-6; DIN-rail mounted: 7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz); Rack mounted (with optional kit): 7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz) Package Vibration Test: ISTA 1A Package Drop Test: ISTA 1A Telcordia Standard SR-332
Altitude	2000 m
