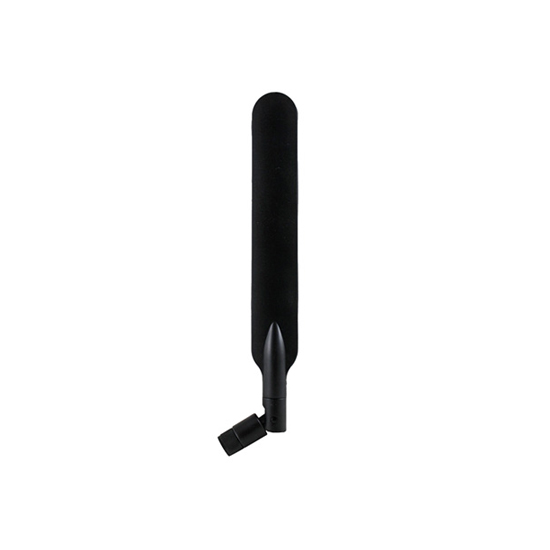

MOXA ANT-5G-ASM-02 Cellular Antenna

Tags: Accessories , Antennas , Wireless Accessories , Cellular Antennas , Industrial Accessories , MOXA ANT-5G-ASM-02 Series

Model: ANT-5G-ASM-02

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA ANT-5G-ASM-02 FEATURES

Frequency: 617 MHz (Min), 7150 MHz (Max)
Antenna Type: Omnidirectional
Antenna Gain: 1 dBi (Min), 2.5 dBi (Max)
Connector Type: SMA (male)
Plastic body design
Straight mounting support
-20 to 65°C Operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA ANT-5G-ASM-02 INTRODUCTION

The ANT-5G-ASM-02 Series is an omnidirectional, lightweight, compact antenna suitable for LTE and 5G NR bands. The antenna provides a gain of 2 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA ANT-5G-ASM-02 Cellular Antenna online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ANT-5G-ASM-03 Series and ANT-5G-ASM-07 Series in the MOXA Cellular Antennas.

Antenna : Antenna Characteristics
Frequency	617 to 960 MHz, 1452 to 1575.412 MHz, 1710 to 2690 MHz, 3300 to 4200 MHz, 4400 to 5000 MHz, 5150 to 7150 MHz
Antenna Type	Omni-directional
Antenna Gain	1 dBi @ 617 to 960 MHz (5G NR n28, 71), 2.5 dBi @ 1452 to 1575.412 MHz (5G NR n50, 51, 74, 75, 76 ), 2.5 dBi @ 1710 to 2690 MHz (5G NR n1, 2, 3, 7, 25, 34, 38, 39, 40, 41, 65, 66, 80, 84, 86), 2.5 dBi @ 3300 to 4200 MHz (5G NR n77, 78), 2.5 dBi @ 4400 to 5000 MHz (5G NR n79), 2.5 dBi @ 5150 to 7150 MHz
Connector	SMA (male)
Impedance	50 ohms
Polarization	Vertical, Linear
HPBW/Horizontal	360°
HPBW/Vertical	-
V.S.W.R.	< 3 @ 617 to 960 MHz, < 3 @ 1452 to 1575.412 MHz, < 3 @ 1710 to 2690 MHz, < 3 @ 3300 to 4200 MHz, < 3 @ 4400 to 5000 MHz, < 3 @ 5150 to 7150 MHz
Power Handling	-
Antenna : Physical Characteristics
Dimensions	-
Weight	30 g (0.07 lb)
Length	205 mm (8.07 in)
IP Rating	-
Installation	Straight mount
Cable Length	-
Operating Temperature	-20 to 65°C (-4 to 149°F)
Housing	Plastic
Storage Temperature	-30 to 70°C (-22 to 158°F)
Ambient Relative Humidity	5 to 95% (30°C, non-condensing)
