MOXA ANT-5G-OSM-03-1m FEATURES

Frequency: 617 MHz (Min), 7150 MHz (Max)
Antenna Type: Omnidirectional
Antenna Gain: 1.5 dBi (Min), 4 dBi (Max)
Connector Type: SMA (male)
Plastic body design
Adhesive mounting support
-30 to 70°C Operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA ANT-5G-OSM-03-1m INTRODUCTION

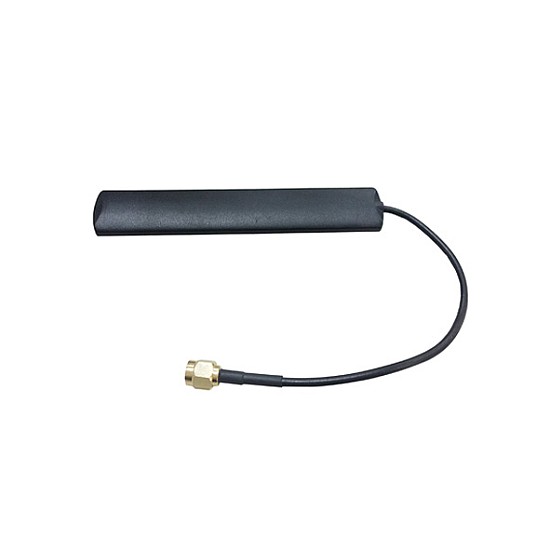

The ANT-5G-OSM-03 Series is a lightweight omnidirectional antenna with adhesive tape, suitable for LTE and 5G NR bands. The antenna provides a gain of 4 dBi and is designed to operate in temperatures ranging from -30 to 70°C.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA ANT-5G-OSM-03-1m Cellular Antenna online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ANT-5G-OSM-03-1.5m and ANT-5G-OSM-03-2m models in the MOXA ANT-5G-OSM-03 Series.

Antenna : Antenna Characteristics
Frequency	617 to 960 MHz, 1452 to 2690 MHz, 3300 to 5850 MHz, 5850 to 7150 MHz
Antenna Type	Omni-directional
Antenna Gain	1.5 dBi @ 617 to 960 MHz, 4 dBi @ 1452 to 2690 MHz, 4 dBi @ 3300 to 5850 MHz, 4 dBi @ 5850 to 7150 MHz
Connector	SMA (male)
Impedance	50 ohms
Polarization	Vertical, Linear
HPBW/Horizontal	-
HPBW/Vertical	-
V.S.W.R.	≤ 2.5 @ 617 to 960 MHz, ≤ 2.0 @ 1452 to 2690 MHz, ≤ 2.0 @ 3300 to 5850 MHz, ≤ 2.5 @ 5850 to 7150 MHz
Power Handling	-
Antenna : Physical Characteristics
Dimensions	110 x 20 x 5.4 mm (4.33 x 0.79 x 0.21 in)
Weight	24 g (0.05 lb)
Length	-
IP Rating	-
Installation	Adhesive mount
Cable Length	1 m
Operating Temperature	-30 to 70°C (-22 to 158°F)
Housing	Plastic
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (30°C, non-condensing)
