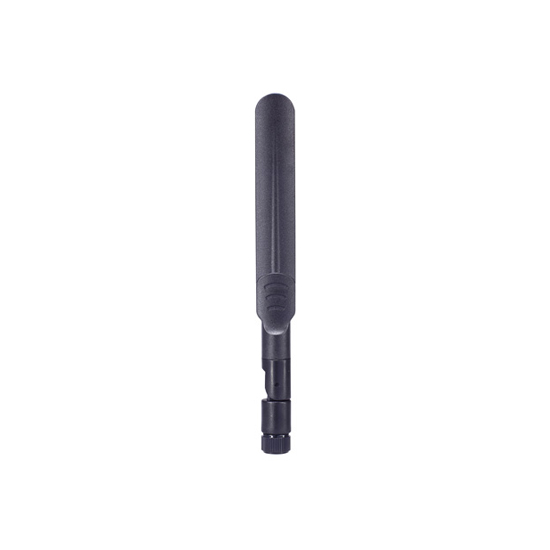

MOXA ANT-5G-ASM-03 Cellular Antenna

Tags: Accessories , Antennas , Wireless Accessories , Cellular Antennas , Industrial Accessories , MOXA ANT-5G-ASM-03 Series

Model: ANT-5G-ASM-03

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA ANT-5G-ASM-03 FEATURES

Frequency: 617 MHz (Min), 2690 MHz (Max)
Antenna Type: Omnidirectional
Antenna Gain: 0.63 dBi (Min) 3.67 dBi (Max)
Connector Type: SMA (male)
Plastic body design
Straight mounting support
-40 to 85°C Operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA ANT-5G-ASM-03 INTRODUCTION

The ANT-5G-ASM-03 Series is an omnidirectional, lightweight, compact antenna suitable for GSM, UMTS, LTE, and 5G NR bands. The antenna provides a gain of 3 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA ANT-5G-ASM-03 Cellular Antenna online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ANT-5G-ASM-02 Series and ANT-5G-ASM-07 Series in the MOXA Cellular Antennas.

Antenna : Antenna Characteristics
Frequency	617 to 960 MHz, 1420 to 1561 MHz, 1710 to 2170 MHz, 2300 to 2690 MHz
Antenna Type	Omni-directional
Antenna Gain	3.02 dBi @ 617 to 698 MHz (5G NR n71), 0.70 dBi @ 698 to 824 MHz (LTE 700), 0.63 dBi @ 824 to 960 MHz (GSM 850/900), 2.50 dBi @ 1420 to 1561 MHz (LTE Japan B74, 75, 76), 2.83 dBi @ 1710 to 1880 MHz (DCS), 2.91 dBi @ 1850 to 1990 MHz (PCS), 3.65 dBi @ 1920 to 2170 MHz (UMTS1), 3.67 dBi @ 2300 to 2690 MHz (LTE 2600)
Connector	SMA (male)
Impedance	50 ohms
Polarization	Vertical, Linear
HPBW/Horizontal	360°
HPBW/Vertical	-
V.S.W.R.	< 5.85 @ 617 to 960 MHz, < 2 @ 1420 to 1561 MHz, < 3 @ 1710 to 2690 MHz
Power Handling	-
Antenna : Physical Characteristics
Dimensions	-
Weight	35.8 g (0.08 lb)
Length	157.5 mm (6.2 in)
IP Rating	-
Installation	Straight mount
Cable Length	-
Operating Temperature	-40 to 85°C (-40 to 185°F)
Housing	Plastic
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (30°C, non-condensing)
