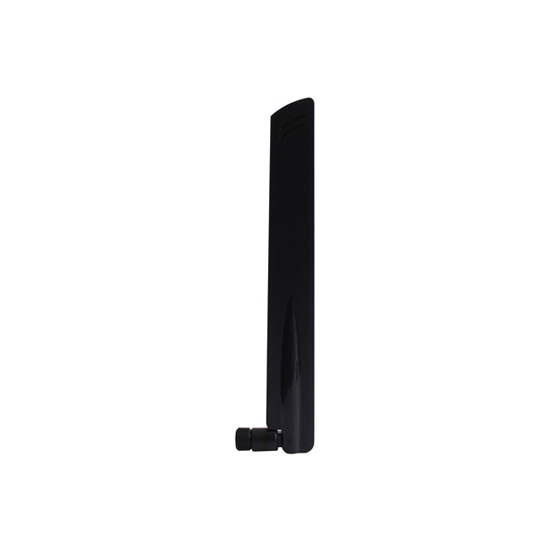

MOXA ANT-5G-ASM-07 Cellular Antenna

Tags: Accessories , Antennas , Wireless Accessories , Cellular Antennas , Industrial Accessories , MOXA ANT-5G-ASM-07 Series

Model: ANT-5G-ASM-07

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA ANT-5G-ASM-07 FEATURES

Frequency: 617 MHz (Min), 5925 MHz (Max)
Antenna Type: Omnidirectional
Antenna Gain: 1.29 dBi (Min), 7.72 dBi (Max)
Connector Type: SMA (male)
Plastic body design
Straight mounting support
-40 to 85°C Operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA ANT-5G-ASM-07 INTRODUCTION

The ANT-5G-ASM-07 Series is an omnidirectional, lightweight, compact antenna suitable for GSM, UMTS, LTE, and 5G NR bands. The antenna provides a gain of 7 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA ANT-5G-ASM-07 Cellular Antenna online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ANT-5G-ASM-03 Series and ANT-5G-ASM-02 Series in the MOXA Cellular Antennas.

Antenna : Antenna Characteristics
Frequency	617 to 960, 1710 to 2170, 2300 to 2690, 3300 to 3800, 4200 to 4700, 5000 to 5925 MHz
Antenna Type	Omni-directional
Antenna Gain	1.29 dBi @ 617 to 698 MHz, 2.00 dBi @ 698 to 824 MHz, 1.29 dBi @ 824 to 960 MHz, 3.77 dBi @ 1710 to 1880 MHz, 4.55 dBi @ 1850 to 1990 MHz, 5.49 dBi @ 1920 to 2170 MHz, 5.21 dBi @ 2300 to 2690 MHz,5.14 dBi @ 33 00 to 3800 MHz, 6.57 dBi @ 4200 to 4700 MHz, 7.72 dBi @ 5000 to 5925 MHz
Connector	SMA (male)
Impedance	50 ohms
Polarization	Vertical, Linear
HPBW/Horizontal	360°
HPBW/Vertical	-
V.S.W.R.	< 7.5 @ 617 to 698 MHz, < 4.5 @ 698 to 824 MHz, < 4.4 @ 824 to 960 MHz, < 1.9 @ 1710 to 1880 MHz, < 2.7 @ 1850 to 1990 MHz, < 4.1 @ 1920 to 2170 MHz, < 2.1 @ 2300 to 2690 MHz, < 2.5 @ 3300 to 3800 MHz, < 1.9 @ 4200 to 4700 MHz, < 2.0 @ 5000 to 5925 MHz
Power Handling	-
Antenna : Physical Characteristics
Dimensions	-
Weight	35.8 g (0.08 lb)
Length	220 mm (8.66 in)
IP Rating	-
Installation	Straight mount
Cable Length	-
Operating Temperature	-40 to 85°C (-40 to 185°F)
Housing	Plastic
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (30°C, non-condensing)
