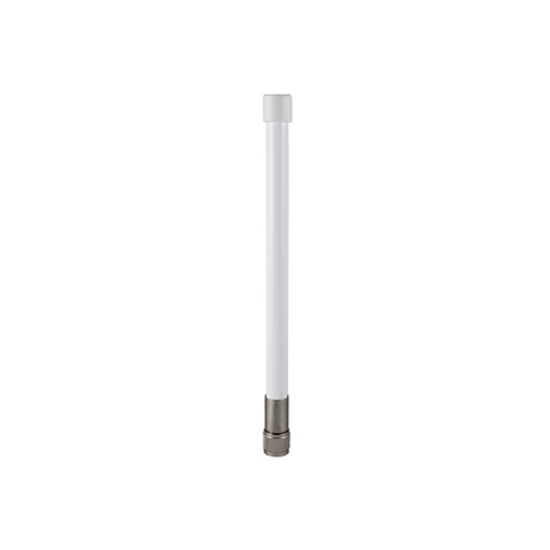

MOXA ANT-WDB-ONM-0707 WLAN Antenna

Tags: Accessories , Antennas , Wireless Accessories , WLAN Antennas , Industrial Accessories , MOXA ANT-WDB-ONM-0707 Series

Model: ANT-WDB-ONM-0707

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA ANT-WDB-ONM-0707 FEATURES

Frequency: 2.4 MHz (Min), 5.85 MHz (Max)
Antenna Type: Omnidirectional
Antenna Gain: 7/7 dBi
Connector Type: N-type (female)
IP65-rated Fiberglass body design
Straight mount installation support
-40 to 85°C Operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA ANT-WDB-ONM-0707 INTRODUCTION

The ANT-WDB-ONM-0707 is an omnidirectional dual-band high-gain antenna with a waterproof N-type male connector. The IP65-rated housing and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA ANT-WDB-ONM-0707 WLAN Antenna online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ANT-WDB-PNF-1011 Series and the ANT-WDB-ONF-0709 Series models in the MOXA WLAN Antennas.

Antenna : Antenna Characteristics
Frequency	2.4 to 2.4835 GHz or 5.15 to 5.85 GHz
Antenna Type	Omni-directional
Antenna Gain	7/7 dBi
Connector	N-type (female)
Impedance	50 ohms
Polarization	Vertical
HPBW/Horizontal	360°
HPBW/Vertical	-
V.S.W.R.	1:2.5 max
Power Handling	10 W (max.)
Antenna : Physical Characteristics
Dimensions	Diameter: 20 mm (0.79 in), Length: 528 mm (20.79 in)
Weight	152 g (0.34 lb)
Length	-
IP Rating	IP65
Installation	Pole mount
Cable Length	-
Operating Temperature	-40 to 85°C (-40 to 185°F)
Housing	Fiberglass
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	-
