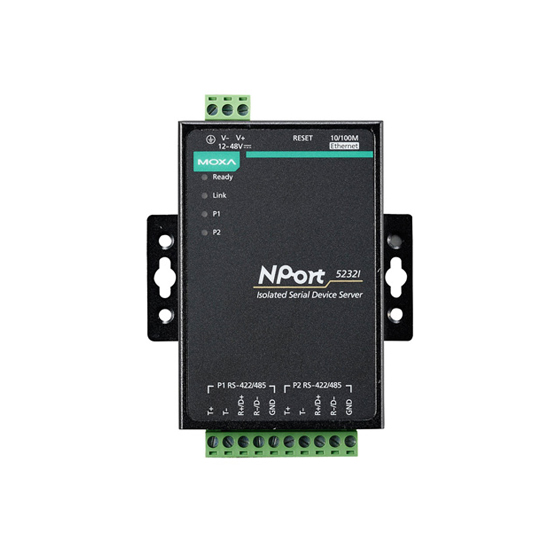

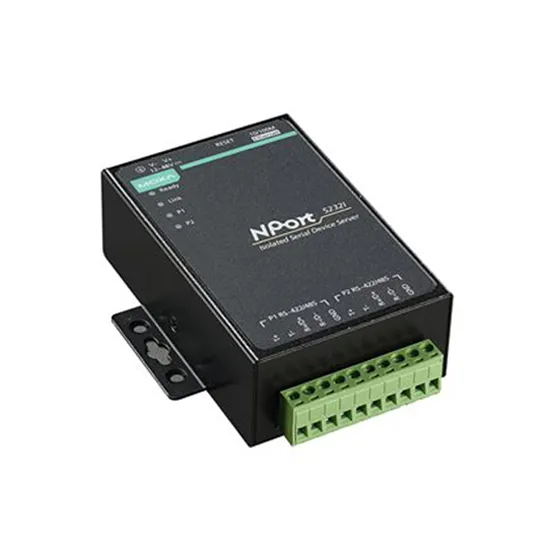

MOXA NPort 5232I Serial to Ethernet Device Server

MOXA NPort 5232I Serial to Ethernet Device Server
MOXA NPort 5232I Serial to Ethernet Device Server
MOXA NPort 5232I Serial to Ethernet Device Server
MOXA NPort 5232I Serial to Ethernet Device Server
Tags: Industrial Edge Connectivity , Serial Device Servers , General Device Servers , Industrial Serial Device Servers , Serial to Ethernet Device Servers , Serial to Ethernet Converters , Industrial Converters , Converters , MOXA NPort 5200 Series
MOXA NPort 5232I Serial to Ethernet Device Server
  • Model: NPort 5232I
Moxa Moxa
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Buy Now Enquire Now
Add to Wish List Compare this Product

MOXA NPort 5232I FEATURES

  • 1 x 10/100BaseT(X) Port (RJ45 connector)
  • 2 x RS 422/485 Serial ports (TB connector)
  • 12 to 48 VDC input power range
  • Desktop, DIN-rail, and Wall mounting
  • Metal body design
  • 2KV isolation protection for serial ports
  • 0 to 55°C operating temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA NPort 5232I INTRODUCTION

The Moxa NPort 5232I serial to Ethernet device server is a powerful solution for extending and modernizing industrial networks in factory automation environments. Part of the Moxa NPort series within industrial edge connectivity, this device converts RS-422/485 serial signals to Ethernet, enabling seamless integration of legacy equipment into modern network infrastructures. The NPort 5232I device server, a member of the Moxa NPort 5200 Series and serial device servers, offers two serial ports with 2 kV isolation, supporting baud rates from 110 bps to 230.4 kbps. Its versatile installation options, including desktop, DIN-rail (with optional kit), and wall mounting, allow engineers to deploy it in control cabinets or confined spaces easily. With a wide operating temperature range of 0 to 55°C, the NPort 5232I ensures reliable communication for sensors, controllers, and HMIs across complex factory automation systems. For complete technical details, see the Moxa NPort 5232I datasheet.


As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA NPort 5232I Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NPort 5230-T, NPort 5210, and NPort 5232I-T models in the MOXA NPort 5200 Series.

MOXA NPort 5232I CERTIFICATIONS

Engineered to meet stringent industrial standards, the Moxa NPort 5232I serial to Ethernet device server complies with EMC, EMI, EMS, safety, and medical certifications, guaranteeing robust and interference-free operation even in challenging factory environments. Its certified design provides engineers and system integrators with confidence in long-term reliability and uninterrupted data flow, making it an essential general device server within the industrial edge connectivity ecosystem. For a full list of compliance and specifications, refer to the Moxa NPort 5232I Manual.



Serial-to-Ethernet : Interface
10/100Mb RJ45 (Megabit) Ports Yes : 1 Port
100BaseFX Ports No
Digital Input Channels No
Digital Output Channels No
Magnetic Isolation Protection 1.5 kV (built-in)
Alarm Contact Channels No
Protocols -
Serial-to-Ethernet : Serial Interface
Number of Ports 2 Ports
Serial Standards RS-422/485
Connector Terminal block
Console Port No
Serial-to-Ethernet : Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Baudrate Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
Isolation Yes : 2KV
Serial-to-Ethernet : Serial Signals
RS-232 -
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
Serial-to-Ethernet : Communication details
Wireless Standards No
Maximum data transfer speed No
Maximum direct range No
Serial-to-Ethernet : Power Requirements
Connection 1 removable 3-contact terminal block(s)
Input Voltage 12 to 48 VDC
Input Current 280 mA @ 12 VDC, 365 mA @ 12 VDC
Serial-to-Ethernet : General
Management DHCP Client, IPv4, SNTP, SMTP, SNMPv1, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, Telnet, ICMP
MTBF 309,383 hrs
Compatible operating systems Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers macOS versions: 10.12 to 10.15, 11.x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Automatic Reboot Trigger Built-in WDT
Serial-to-Ethernet : Security
Authentication Local database (password only)
Security No
Encryption No
Serial-to-Ethernet : Features and capabilities
Display No
Serial-to-Ethernet : Physical Characteristics
Dimensions with ears: 90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in), without ears: 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 60950-1; Maritime: DNV; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
Installation Desktop, DIN-rail mounting (with optional kit), Wall mounting
Housing Metal
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Weight 380 g (0.84 lb)
