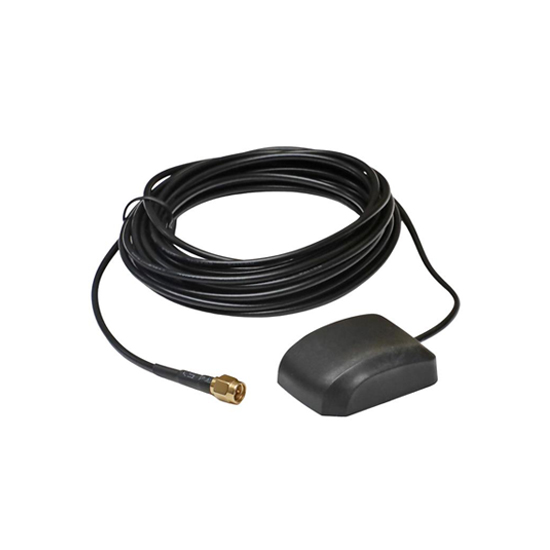

MOXA ANT-GPS-CSM-04-3m GNSS Antenna

MOXA ANT-GPS-CSM-04-3m GNSS Antenna
  • Model: ANT-GPS-CSM-04-3m
$0.00
Ex Tax: $0.00

MOXA ANT-GPS-CSM-04-3m FEATURES

  • Frequency: 1575 to 1605 MHz
  • Antenna Type: Directional
  • Antenna Gain: 4 dBi (Min), 20 dBi (Max)
  • Connector Type: SMA (male)
  • IP65-rated Plastic body design
  • Magnetic-mount installation
  • -40 to 85°C Operating temperature
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA ANT-GPS-CSM-04-3m INTRODUCTION

The ANT-GPS-CSM-04-3m Series is an omnidirectional cone-shaped antenna suitable for GPS applications. The antenna provides a gain of 4 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA ANT-GPS-CSM-04-3m GNSS Antenna online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ANT-GNSS-CSM-02-3m Series in the MOXA GNSS Antennas.

Antenna : Antenna Characteristics
Frequency 1575 to 1605 MHz
Antenna Type Directional
Antenna Gain Without low noise amplifier: 4 dBi, With low noise amplifier: 20 dBi
Connector SMA (male)
Impedance 50 ohms
Polarization Vertical, Linear
HPBW/Horizontal -
HPBW/Vertical -
V.S.W.R. < 2.0 (max.)
Power Handling -
Antenna : Physical Characteristics
Dimensions -
Weight Without cable and connector: 125 g (0.28 lb)
Length 48.8 mm
IP Rating IP67
Installation Screw mount
Cable Length 3 m
Operating Temperature -40 to 85°C (-40 to 185°F)
Housing Plastic
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (30°C, non-condensing)
