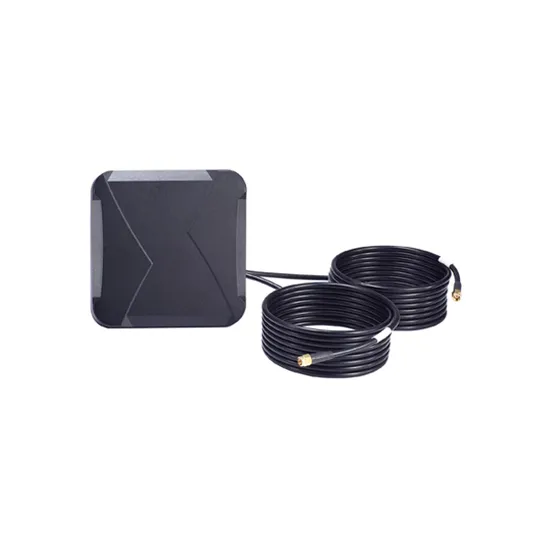

MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna

MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna
MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna
MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna
MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna
Tags: Accessories , Antennas , Wireless Accessories , Cellular Antennas , Industrial Accessories , MOXA MAT-5G-PA-SM-2-06-3m Series
MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna
  • Model: MAT-5G-PA-SM-2-06-3m
Moxa Moxa
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Buy Now Enquire Now
Add to Wish List Compare this Product

MOXA MAT-5G-PA-SM-2-06-3m FEATURES

  • Frequency: 617 MHz (Min), 2690 MHz (Max)
  • Antenna Type: Panel
  • Antenna Gain: 1.55 dBi (Min), 7.10 dBi (Max)
  • Connector Type: SMA (male)
  • Plastic body design with IPx9K protection
  • Screw-mounting support
  • -40 to 85°C Operating temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA MAT-5G-PA-SM-2-06-3m INTRODUCTION

The MAT-5G-PA-SM-3-06-3m Series is a 3-in-1 panel antenna suitable for GSM, UMTS, LTE, 5G NR bands, GPS, GLONASS, and BDS systems. The antenna provides a gain of 6 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the MAT-5G-PA-SM-4-05-1m Series and MAT-5G-PA-SM-3-06-3m Series in the MOXA Cellular Antennas.

Antenna : Antenna Characteristics
Frequency 617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz
Antenna Type Panel
Antenna Gain 1.55 dBi @ 617 to 698 MHz (5G NR n71), 4.32 dBi @ 698 to 824 MHz (LTE 700), 5.18 dBi @ 824 to 960 MHz (GSM 850/900), 6.69 dBi @ 1427 to 1510 MHz (5G NR n74, 75, 76), 6.80 dBi @ 1710 to 1880 MHz (DCS), 7.10 dBi @ 1850 to 1990 MHz (PCS), 7.10 dBi @ 1920 to 2170 MHz (UMTS1), 5.41 dBi @ 2300 to 2690 MHz (LTE 2600)
Connector SMA (male)
Impedance 50 ohms
Polarization Vertical, Linear
HPBW/Horizontal -
HPBW/Vertical -
V.S.W.R. -
Power Handling -
Antenna : Physical Characteristics
Dimensions 135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)
Weight -
Length -
IP Rating IPx9K
Installation Screw mount
Cable Length 3 m
Operating Temperature -40 to 85°C (-40 to 185°F)
Housing Plastic
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (30°C, non-condensing)
