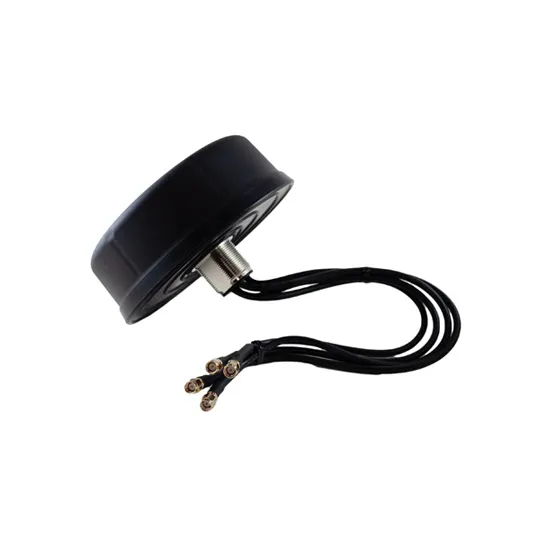

MOXA MAT-5G-PA-SM-4-05-1m Wireless MIMO Panel Antenna

MOXA MAT-5G-PA-SM-4-05-1m Wireless MIMO Panel Antenna
MOXA MAT-5G-PA-SM-4-05-1m Wireless MIMO Panel Antenna
MOXA MAT-5G-PA-SM-4-05-1m Wireless MIMO Panel Antenna
MOXA MAT-5G-PA-SM-4-05-1m Wireless MIMO Panel Antenna
Tags: Accessories , Antennas , Wireless Accessories , Cellular Antennas , Industrial Accessories , MOXA MAT-5G-PA-SM-4-05-1m Series
MOXA MAT-5G-PA-SM-4-05-1m Wireless MIMO Panel Antenna
  • Model: MAT-5G-PA-SM-4-05-1m
Moxa Moxa
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Buy Now Enquire Now
Add to Wish List Compare this Product

MOXA MAT-5G-PA-SM-4-05-1m FEATURES

  • Frequency: 698 MHz (Min), 5925 MHz (Max)
  • Antenna Type: Panel
  • Antenna Gain: 3 dBi (Min), 5 dBi (Max)
  • Connector Type: SMA (male)
  • IP67-rated Plastic body design
  • Pole and Screw mounts support
  • -30 to 70°C Operating temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA MAT-5G-PA-SM-4-05-1m INTRODUCTION

The ANT-5G-OSM-03 Series is a lightweight omnidirectional antenna with adhesive tape, suitable for LTE and 5G NR bands. The antenna provides a gain of 4 dBi and is designed to operate in temperatures ranging from -30 to 70°C.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA MAT-5G-PA-SM-4-05-1m Wireless MIMO Panel Antenna online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the MAT-5G-PA-SM-2-06-3m Series and MAT-5G-PA-SM-3-06-3m Series in the MOXA Cellular Antennas.

Antenna : Antenna Characteristics
Frequency 698 to 960, 1710 to 2700, 3300 to 5925 MHz
Antenna Type Panel
Antenna Gain 3 dBi @ 698 to 960 MHz, 4 dBi @ 1710 to 2700 MHz, 5 dBi @ 3300 to 5925 MHz
Connector SMA (male)
Impedance 50 ohms
Polarization Vertical, Linear
HPBW/Horizontal -
HPBW/Vertical -
V.S.W.R. -
Power Handling -
Antenna : Physical Characteristics
Dimensions φ 141.3 x 50 mm (φ 5.56 x 1.97 in)
Weight 24 g (0.05 lb)
Length -
IP Rating IP67
Installation Pole mount, Screw mount
Cable Length 1 m
Operating Temperature -30 to 70°C (-22 to 158°F)
Housing Plastic
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (30°C, non-condensing)
