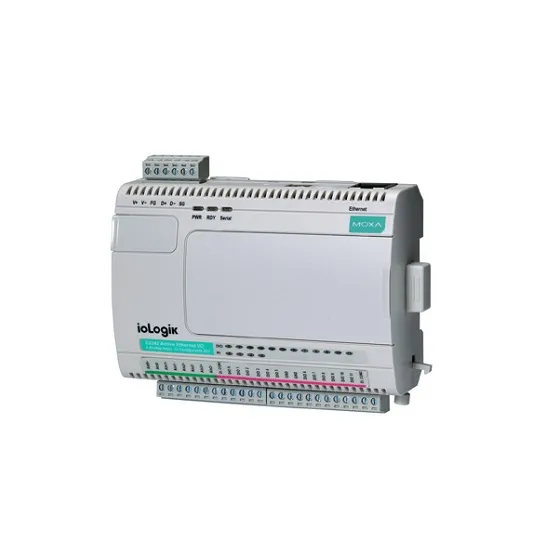

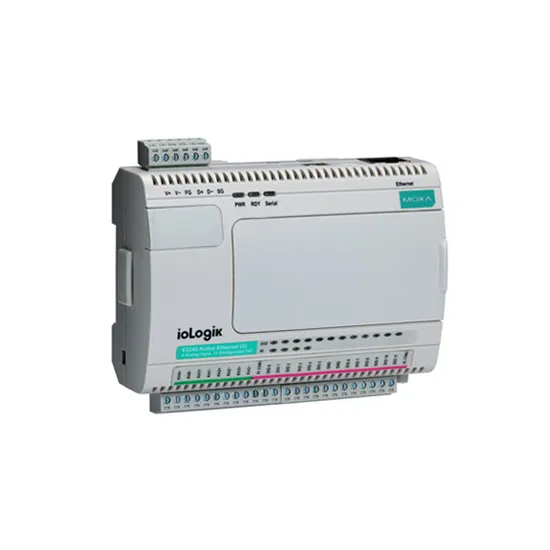

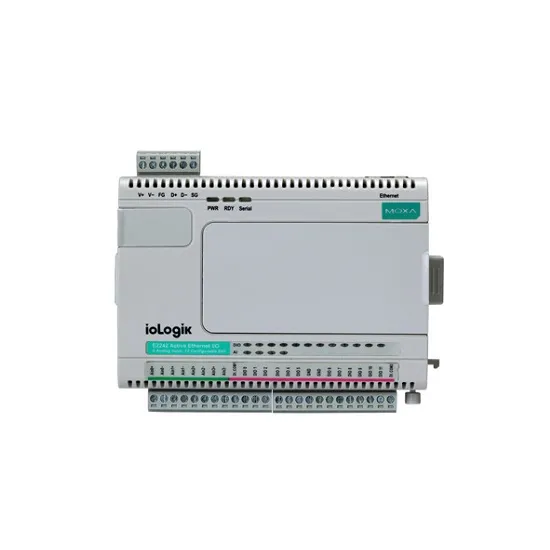

MOXA ioLogik E2242-T Smart Ethernet Remote I/O

MOXA ioLogik E2242-T INTRODUCTION

The Moxa ioLogik E2242-T smart Ethernet remote I/O is a key component of the Moxa ioLogik E2200 series, providing advanced industrial edge connectivity for factory automation applications. This PC-based data acquisition and control device features proactive, event-driven reporting, which offers a significant improvement over traditional PLC systems that rely on continuous data polling. The Moxa E2242-T comes with 12 Configurable DIO Channels (by software) with Wet Contact (NPN or PNP), Dry Contact, and 4 Analog Input Channels with Analog input range of ±150 mV, 0-150 mV, ±500 mV, 0-500 mV, ±5 V, 0-5 V, ±10 V, 0-10 V, 0-20 mA, 4-20 mA. In conjunction with Moxa’s MX-AOPC UA Server, this smart I/O system actively pushes data to the server upon state changes or predefined events to ensure rapid and reliable data transmission. Designed for industrial environments, these Moxa industrial edge connectivity solutions support both DIN-rail and wall mounting options, with a wide operating temperature range of -40 to 75°C (-40 to 167°F) to withstand demanding conditions.

Secure and Scalable SNMP Integration for I/O Management

Supporting SNMP v1/v2c/v3, the Moxa ioLogik E2242-T Ethernet remote I/O allows IT engineers to configure and manage I/O devices efficiently. SNMP functionality enables the transmission of alarms (traps) for specific I/O events and facilitates direct read/write access to I/O registers. For enhanced security, the device supports SNMPv3 with authentication and encryption. The Moxa ioLogik E2242-T is particularly well-suited for deployment in industrial networks that demand reliable communication across diverse sectors, including environmental monitoring, telecommunications, and power generation. Through Moxa controllers and I/Os, the Moxa ioLogik series delivers robust capabilities for managing industrial sensors and servos over Ethernet networks.

Enhanced Push Technology for SCADA Integration

When integrated with Moxa’s MX-AOPC UA Server, the ioLogik E2242-T uses push technology for remote I/O management. Unlike traditional polling methods, this approach ensures that data is transmitted only upon the occurrence of specific state changes or triggered events, substantially reducing network traffic and improving event notification accuracy. The Moxa ioLogik E2242-T remote I/O is engineered to enhance communication efficiency with SCADA systems, providing a highly reliable and streamlined solution for real-time industrial monitoring. For further details and technical specifications, the Moxa ioLogik E2242-T datasheet is available.

The Moxa ioLogik E2242-T smart Ethernet remote I/O is certified to meet stringent industrial standards, ensuring dependable performance in harsh environments. It complies with EMC (Electromagnetic Compatibility), EMI (Electromagnetic Interference), and EMS (Electromagnetic Susceptibility) standards, safeguarding against electrical disruptions. Furthermore, the ioLogik E2242 T has passed rigorous testing for shock, vibration, and freefall, demonstrating its durability for industrial applications. Backed by these certifications, the universal controller and I/O unit provide a robust and high-performance solution for automation needs. The Moxa remote I/O range delivers consistent and reliable performance across diverse industrial sectors.
