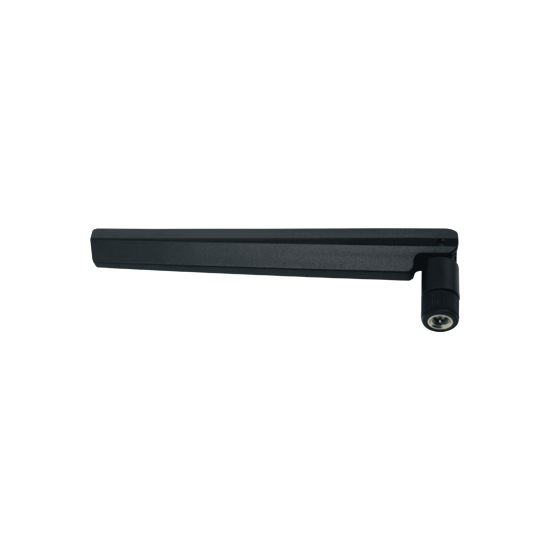

ROBUSTEL E000330174 Cellular Rubber Antenna

Tags: Accessories , IoT Accessories , Antennas , Cellular Antennas , Rubber Antennas , Industrial IoT , Industrial Accessories

Model: E000330174

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

ROBUSTEL E000330174 FEATURES

Frequency: 700-960 MHz | 1710-2700 MHz | 3300-5150 MHz | 5150-5850 MHz
Antenna Gain: 1.78 dBi | 3.27 dBi | 4.29 dBi | 4.02 dBi
Connector: SMA Male
Cable Type: RG178
Operating Temperature: -40 °C to +70 °C
Compatible Products: 4G / 5G products

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

ROBUSTEL E000330174 INTRODUCTION

The 5G Cellular Rubber Antenna (PN: E000330174) is a compact SMA male antenna covering wideband cellular and sub-6 GHz frequencies from 700–960 MHz, 1710–2700 MHz, 3300–5150 MHz, and 5000–5850 MHz, with a typical gain of 4.02 dBi. It is suitable for use with Robustel 5G and LTE routers and gateways wherever a simple plug-on antenna is required for mobile network connectivity.

As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL E000330174 Cellular Rubber Antenna online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the E003203 and E003142 models in the ROBUSTEL Antenna Series.

Antenna : Antenna Characteristics
Frequency	700-960 MHz, 1710-2700 MHz, 3300-5150 MHz, 5150-5850 MHz
Antenna Type	Cellular Rubber Antenna
Antenna Gain	1.78 dBi, 3.27 dBi, 4.29 dBi, 4.02 dBi
Connector	SMA Male
Impedance	50 Ohm
Polarization	Linear
HPBW/Horizontal	-
HPBW/Vertical	-
V.S.W.R.	2.0 Max, 3.5 Max, 3.5 Max, 4.0 Max
Power Handling	-
Antenna : Physical Characteristics
Dimensions	Φ13.0 mm x 22.0 mm × 170.0 mm (±3.0 mm)
Weight	-
Length	-
IP Rating	-
Installation	-
Cable Length	-
Operating Temperature	-40 °C to +70 °C
Housing	-
Storage Temperature	-40 °C to +80 °C
Ambient Relative Humidity	-
