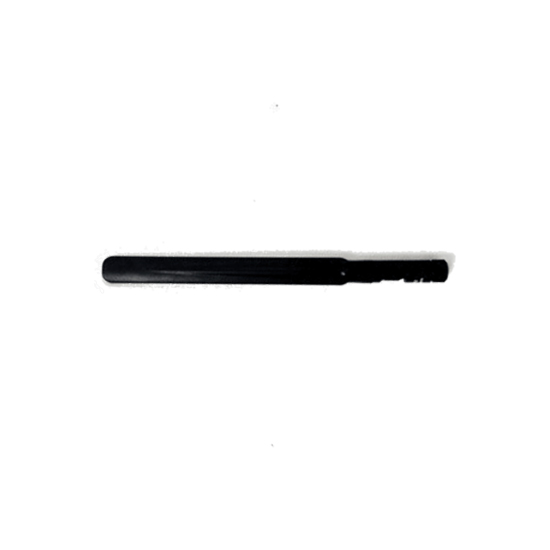

ROBUSTEL E000330220 Cellular Rubber Antenna
- Model: E000330220
ROBUSTEL E000330220 FEATURES
- Frequency: 700-960 MHz | 1710-2690 MHz
- Antenna Gain: 3.7 dBi @700-960 MHz | 3.8 dBi @1710-2690 MHz
- Connector: SMA Male
- Radiation Pattern: Omni-directional
- Operating Temperature: -40 °C to +85 °C
- Compatible Products: 3G / 4G devices, including modems, routers, and gateways
ROBUSTEL E000330220 INTRODUCTION
The 4G/LTE Cellular Rubber Antenna (PN: E000330220) is a compact SMA male antenna designed for cellular bands from 700–960 MHz and 1710–2690 MHz, with a typical gain of 3.8 dBi. It is suitable for use with Robustel 4G/LTE routers and gateways wherever a simple plug-on antenna is required for mobile network connectivity.
As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL E000330220 Cellular Rubber Antenna online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the E000330174 and E000330203 models in the ROBUSTEL Antenna Series.
| Antenna : Antenna Characteristics | |
| Frequency | 700-960 MHz, 1710-2690 MHz |
| Antenna Type | Cellular Rubber Antenna |
| Antenna Gain | 3.7 dBi @700-960 MHz, 3.8 dBi @1710-2690 MHz |
| Connector | SMA Male |
| Impedance | 50 Ohm |
| Polarization | Linear |
| HPBW/Horizontal | - |
| HPBW/Vertical | - |
| V.S.W.R. | 3.0 Max @700-960 MHz, 2.0 Max @1710-2690 MHz |
| Power Handling | - |
| Antenna : Physical Characteristics | |
| Dimensions | Φ13.0 mm x 15.8 mm × 196.5 mm (±4.0 mm) |
| Weight | - |
| Length | - |
| IP Rating | - |
| Installation | - |
| Cable Length | - |
| Operating Temperature | -40 °C to +85 °C |
| Housing | - |
| Storage Temperature | 25±5 °C / < 70% |
| Ambient Relative Humidity | - |
